Mission Viejo, CA (August 5, 2015) - Holt Integrated Circuits today announced the availability of four new application development kits for the recently released MAMBATM family, the world’s smallest MIL-STD-1553/1760 integrated solution. All MAMBATM devices have on-chip dual bus transceivers, 8K words static RAM (16-bit plus parity) and a 40 MHz Serial Peripheral host Interface (SPI).
Kits are offered for four different combinations of MIL-STD-1553 terminal modes: ADK-6138 has BC/RT/MT, ADK-6137 has BC/RT, ADK-6136 has RT/MT and ADK-6135 has RT only.

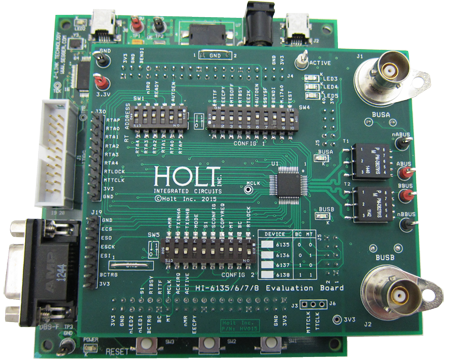

Each kit provides a fully functional out-of-the-box platform for evaluating concurrent operation for any combination of the included 1553 terminal modes. Kit hardware consists of two boards; an upper MAMBATM board has configuration DIP switches, MAMBATM programmed self-configuration EEPROMs and two transformer-coupled MIL-STD-1553 bus interfaces. The lower microprocessor board has the ARM Cortex M3 16/32-bit MCU, JTAG debug interface and regulated 3.3VDC power supply. The MAMBATM board can be separated from the MCU board for connection to a user-supplied alternate microprocessor or FPGA platform.
All kits include a working software reference design written in ANSI C. The project source code is easily customized, encompassing all aspects of single or concurrent multiple terminal operation, including auto-initialization, flexible BC message sequencing, MT message storage, RT message illegalization and mode code handling, data buffering and interrupt management.
“These kits provide a complete reference design for many common MIL-STD-1553 application requirements,” said Anthony Murray, Director of Marketing Communications at Holt. “Holt is excited about the MAMBATM family. Offered in 6 mm QFN or 9 mm QFP, MAMBATM provides customers with the smallest MIL-STD-1553 terminal size and lowest cost on the market today.”
The kit includes an evaluation version of IAR Embedded Workbench® for ARM® from IAR Systems®, a fully functional integrated software development environment including project management tools, optimizing C/C++ compiler and debug interface for all ARM and ARM Cortex microcontrollers. The ARM Cortex-M3 microcontroller board has a Segger “J-Link On Board” debug interface, providing easy connectivity to the Embedded Workbench debug tools via a standard USB cable provided with the kit.
All four kits are available now on request from Holt.
