This development kit is solely for Remote Terminal development. If an MMSI Bus Controller evaluation kit is required, please order the separate HI-6140 BC evaluation kit.
A ready to run ANSI C language reference project is provided for the ARM Cortex M3 evaluation platform, demonstrating operation for a Remote Terminal only. For convenience, this kit includes IAR Systems Embedded Workbench® for ARM, and a fully integrated debug interface for the ARM Cortex M3 microcontroller.
The Quick Start Guide QSG-6140RT describes how to set up and run the board. Additional support material and all required project software are found in the included Holt CD-ROM. A version of the demonstration software is already programmed into the microcontroller flash; the board is operational right out of the box without installing or running the provided software development tools.
Quick Start Guide.
HI-6140 RT Project Software and Documentation CD.
Installation CD for IAR Systems Embedded Workbench® for ARM (32KB KickStart).
Plug-in DC power supply.
USB debug interface cable.
RS-232 serial cable, DB-9M to DB-9F for console I/O using a connected computer.

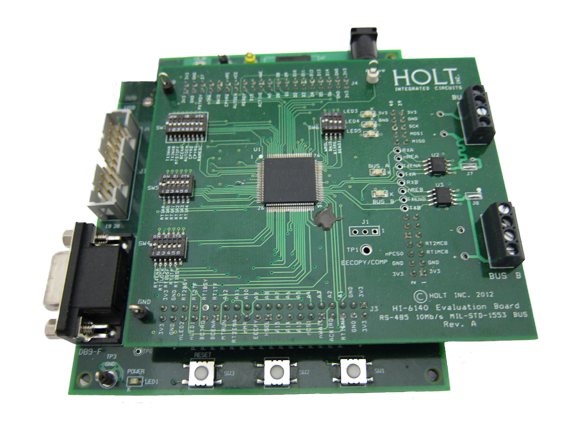

2-board assembly comprised of
Upper HI-6140 RT board with two RS-485 links.
Lower MCU board with ARM Cortex M3 16-/32-bit microprocessor, debug interface and regulated 3.3VDC power supply.
