User Guide.
Holt API library software and user manual.
ANSI C HI-6130PCIe test demo project.
ANSI C HI-6130PCIe API demo project.
9 Pin-D to MIL-STD-1553 BNC breakout cable.
Full size PCI card optional bracket.
CPLD Verilog project files.
CD-ROM containing supporting documentation and software.

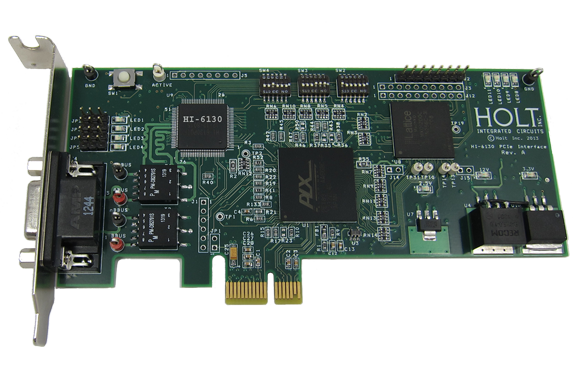

The HI-6130 PCIe development kit is a fully functional MIL-STD-1553B dual redundant bus interface which can operate up to four independent terminals: Bus Controller, Monitor Terminal and up to two Remote Terminals. It may be used right out of the box and comes bundled with Holt’s high-level Application Program Interface (API) software library. In addition, two example projects (including source code) demonstrate typical MIL-STD-1553 application requirements. Customers may use the kit as a MIL-STD-1553 test and simulation board or utilize the development tools and source code provided as the basis of a custom design.
This reference design also shows how the HI-6130 can be connected to the computer PCI Express bus using a bridge chip and programmable logic array. The API Library permits C language programming without detailed familiarity with the register-level HI-6130 operations.
