User Guide.
Holt HI-2130 Project Software and Documentation CD.
Installation CD for IAR Systems Embedded Workbench® for ARM, version 7.1 or greater..
Plug-in 5V DC power supply.
USB debug interface cable.
RS-232 serial cable, DB-9M to DB-9F for console I/O using a connected computer.

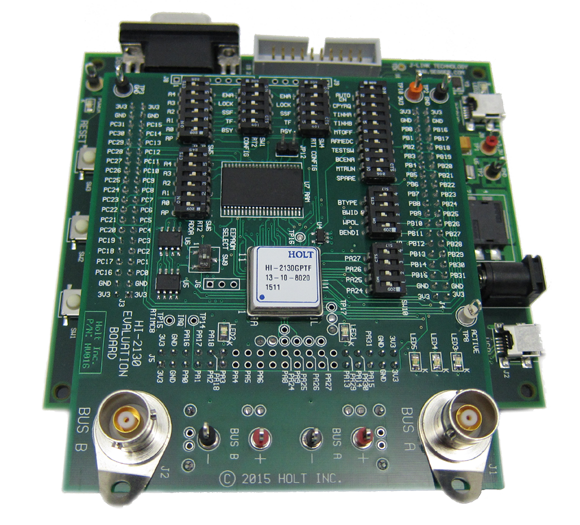

The two board HI-2130 ADK is comprised of…
Upper HI-2130 board with integrated dual transformer-coupled MIL-STD-1553 bus interfaces. Numerous DIP switches configure board operation. Compared to the standard HI-6130 ADK, external 256KB static RAM memory is added for future software expansion.
Lower MCU board with ARM Cortex M3 16/32-bit microprocessor, integrated USB debug interface and regulated 3.3VDC power supply.
The Holt HI-2130 Application Development Kit (ADK) demonstrates the broad feature set of the HI-2130 MIL-STD-1553 Multi-Terminal IC. The 2-board assembly and C project reference design provide a ready-to-run evaluation platform demonstrating concurrent operation for any combination of Bus Controller, Bus Monitor and one or two Remote Terminals. For convenience, this kit includes IAR Systems Embedded Workbench® for ARM and a fully integrated debug interface for the ARM Cortex M3 microcontroller.
Additional support material and all required project software are found in the included Holt CD-ROM. A version of the demonstration software is programmed in the microcontroller’s internal flash; the board is operational right out of the box without installing or running the provided software development tools.
