Holt 10Base-T/100Base-TX Physical Layer Transceiver
RJ-45 Jack for Fast Ethernet cable interface
HP Auto-MDIX for automatic detection and correction for straight-through and crossover cables
RMII interface support with 25MHz crystal/clock input and 50MHz reference clock output to MAC
2 LED Indicators for status and activity
Jumpers to configure strapping pins
Manual Reset Button for quick reboot after re-configuration of strapping pins

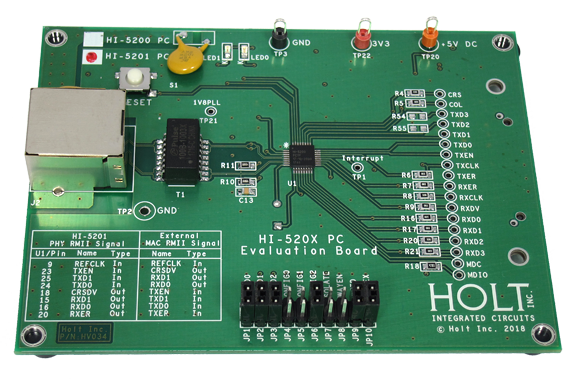

The HI-5201 ADK evaluation board, ADK-5201, plugs into any industry standard “Fast Ethernet” board with Ethernet MAC RMII interface. Configuration of the HI-5201 is accomplished through on-board jumper selections and/or by PHY register access via the MDC/MDIO management pins of the RMII Interface.
